Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q
Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q
Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q
Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q
Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q
Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q

Turbo Actuator For Volkswagen Skoda Audi Q3 2.0 TDI 785448-0003 03L253010F 03L253019Q

by Imported
Rs. 10,100.00 - Rs. 10,100.00
Rs. 10,100.00
Rs. 10,100.00 - Rs. 10,100.00
Rs. 10,100.00

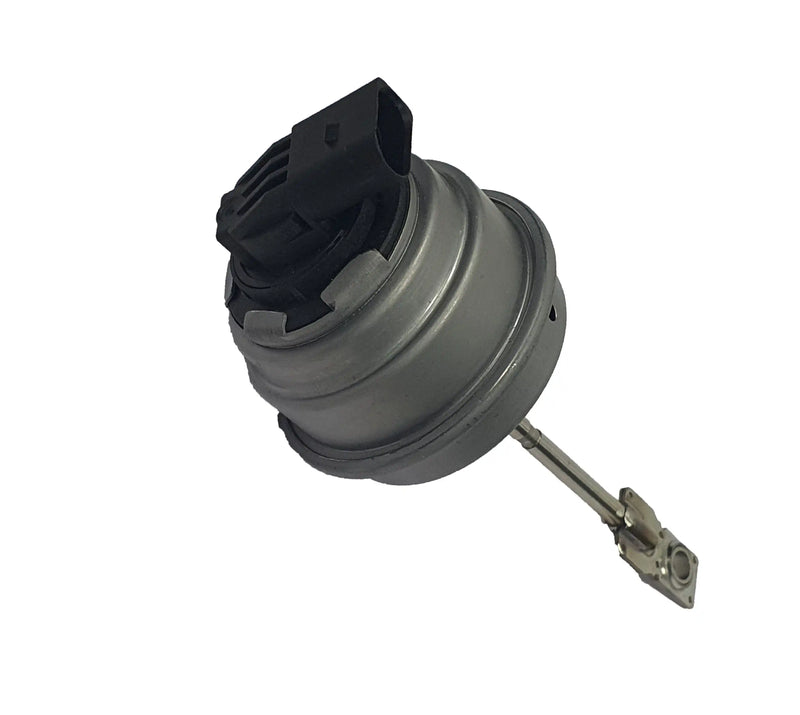

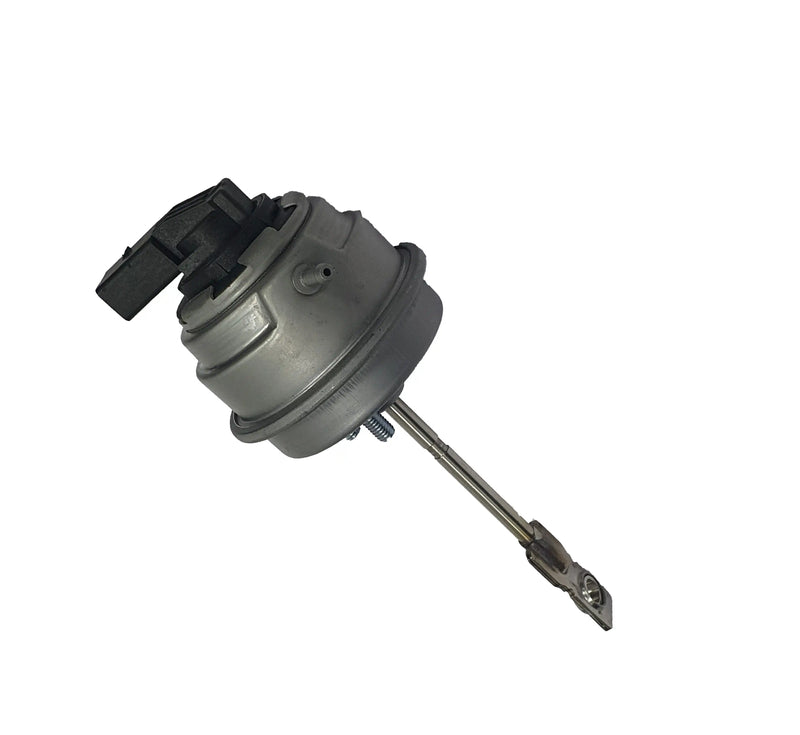

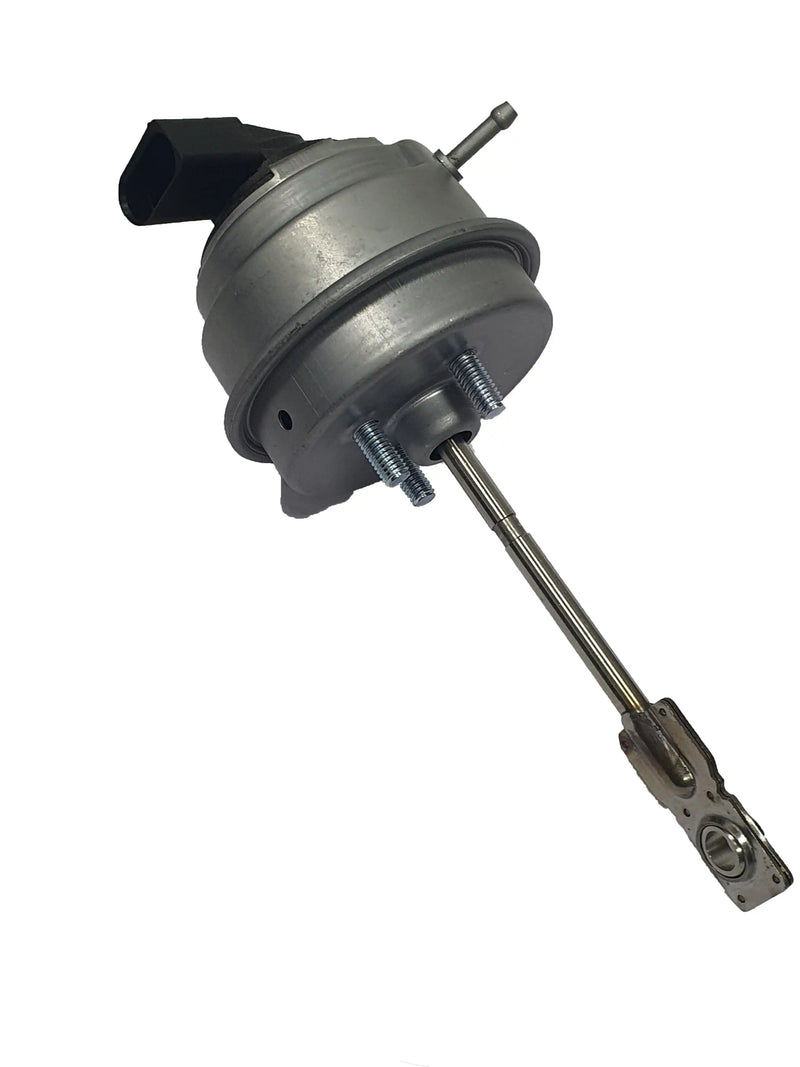

Premium Pneumatic Wastegate Turbo Actuator with Smart Position Sensor | 2.0 TDI (VAG Group)

Fix intermittent loss of boost pressure, erratic acceleration flat-spots, and the persistent "Glow Plug" flashing light or Check Engine Light on your dashboard with this high-precision Pneumatic Turbocharger Wastegate Actuator.

Specifically engineered for the VAG 2.0L TDI Common Rail platforms utilizing the integrated Garrett architecture, this actuator regulates the Variable Geometry Turbocharger (VGT) vanes via its built-in 3-pin electronic smart position sensor. When an original factory diaphragm splits or the sensor electronics corrode from engine heat, the ECU instantly triggers under-boost or over-boost limp mode codes ($P2563$ / $P0299$). This standalone premium replacement component eliminates the need to replace the entire expensive casting assembly when only the controls have failed.

Detailed Application & Structural Alignment

This replacement component is a direct fit for the Garrett GTC1446VZ type turbochargers mounted on transversely positioned 2.0 TDI engines (ranging from 140 PS up to 177 PS configurations):

Technical Specifications & Verification Matrix

  • Actuator Operation: Pneumatic Vacuum-Actuated with Electronic Feedback.

  • Sensor Interface: Integrated 3-Pin Smart Position Sensor (Plug-and-Play linkage).

  • Turbo Model Architecture: Garrett GTC1446VZ Series.

  • Direct Cross-References: Fits Turbo Core / Manifold units stamped with 785448-0003, 785448-5003S, 785448-0005.

  • OEM Part Number Compatibility:

    • 03L253010F / 03L253010FX

    • 03L253019Q / 03L253019QV / 03L253019QX

Key Product Performance Safeguards

  1. Eliminates Limp Mode Traps: Overcomes the common VAG diagnostic error code P2563 (Turbocharger Boost Control Position Sensor Circuit Range/Performance) by sending immediate, precise millivolt feedback loops directly to the engine control unit.

  2. High-Grade Fluorosilicone Diaphragm: The internal flexible element is vulcanized to endure continuous exposure to high cycling pressures and intense manifold heat without cracking.

  3. Anti-Corrosive Outer Shell: Encased in heavy-duty zinc-plated structural steel to resist road salt, surface scaling, and environmental humidity.
