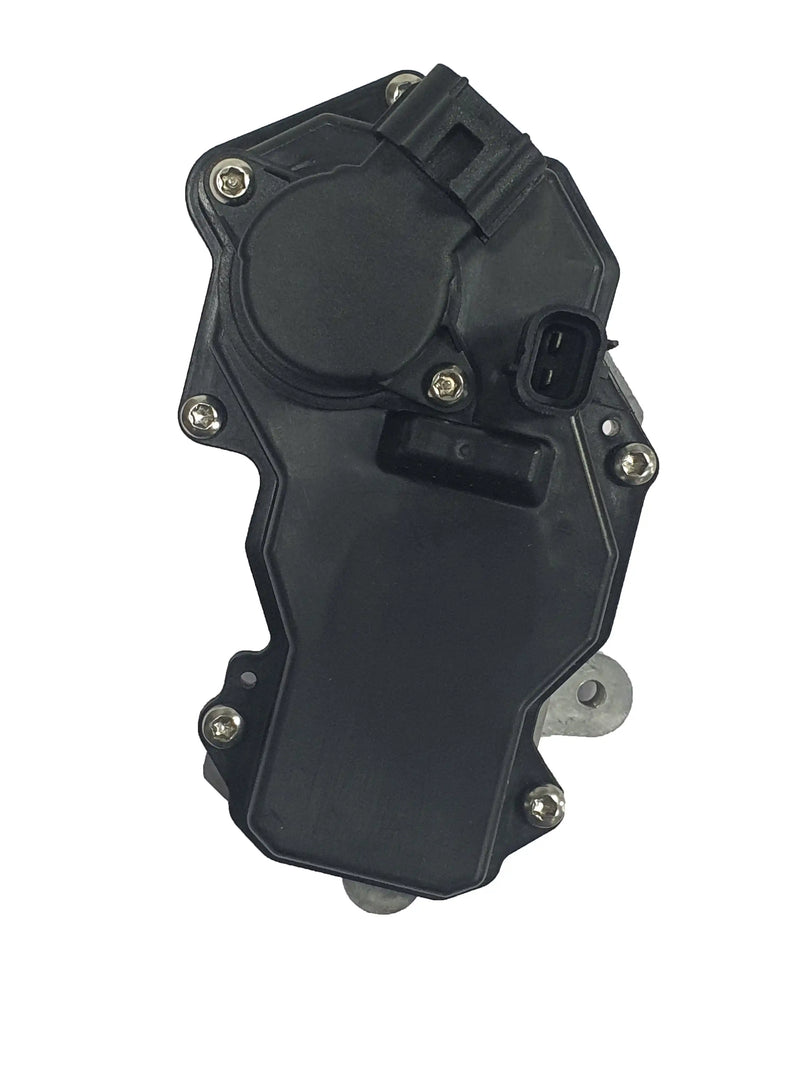

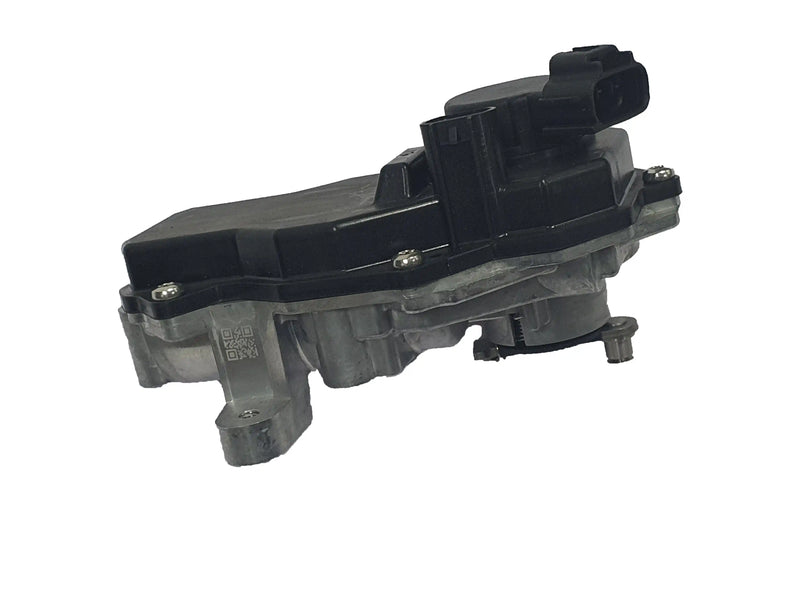

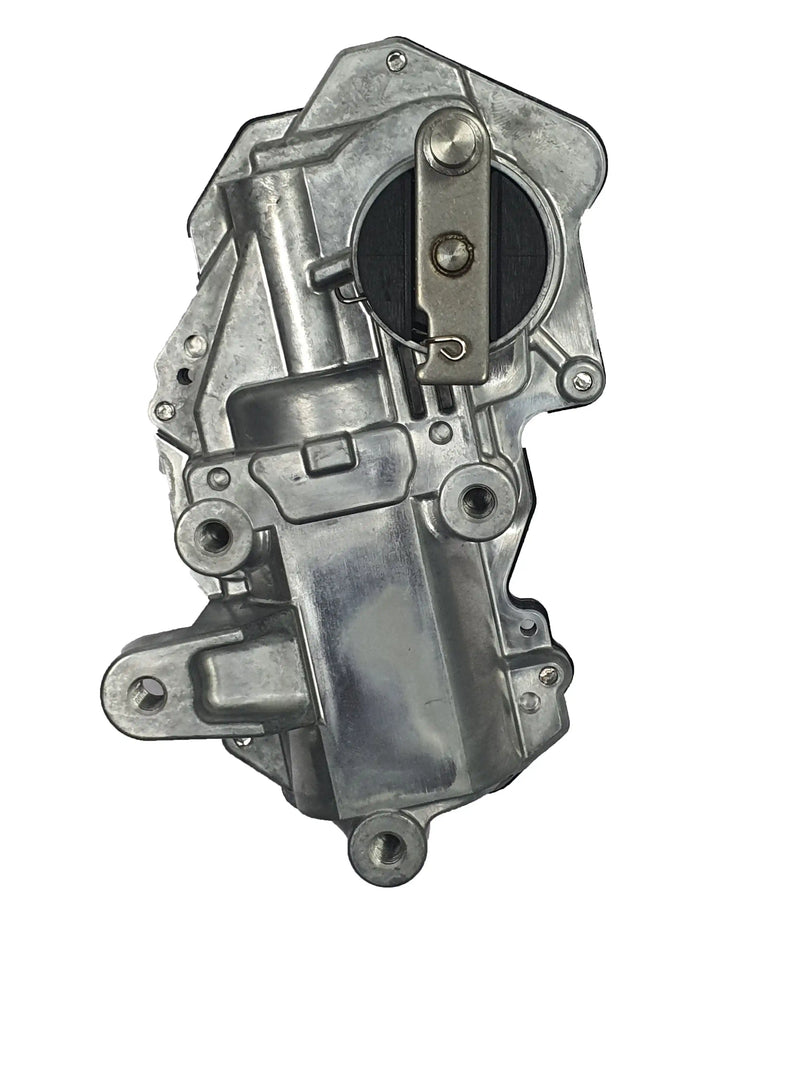

Turbocharger Electronic Actuator For Toyota Fortuner Innova Crysta Hilux 17201-11110 17201-11120
Premium Turbocharger Electronic Actuator for Toyota Fortuner, Innova Crysta & Hilux 2.8L/2.4L | 17201-11110
Eliminate sudden under-boost fault codes ($P0299$ or $P1251$), fix sluggish low-end throttle response, and resolve erratic power delivery with this premium Turbocharger Electronic Stepper Actuator. Specifically engineered to handle the ultra-precise vane adjustments and high backpressures required by modern common-rail clean diesel engines, this direct replacement digital actuator solves common high-mileage failures like stripped internal plastic gear teeth, burnt electric circuit boards, and sticking variable nozzle linkages that trigger severe engine de-rates or sudden limp-mode warnings.
Unlike older pneumatic setups, this high-precision electric actuator uses an internal DC motor and digital positioning sensor to manipulate the Variable Nozzle Turbine (VNT) vanes inside the exhaust housing, following microsecond commands directly from the vehicle's Engine Control Unit (ECU). It is custom-matched as a direct bolt-on component for original Toyota/Garrett turbochargers with production numbers 17201-11110 and 17201-11120. Sourcing an individual electronic actuator allows fleet owners, workshops, and SUV owners to repair digital boost control issues without the massive expense of buying a completely new variable-geometry turbocharger assembly.
Detailed Passenger & Commercial Vehicle Application Mapping
This premium clean-diesel electronic actuator is calibrated explicitly to communicate seamlessly with Toyota's modern GD-series engine infrastructure:
-
Toyota Fortuner: 2.8L variant models (Model Years 2016–2026+).
-
Toyota Hilux Revo: 2.4L and 2.8L heavy-duty utility pickup trucks.
-
Engine Suitability: Engineered strictly for the Toyota 1GD-FTV (2.8L) and 2GD-FTV (2.4L) D-4D 4-Cylinder common-rail diesel engines configured for modern emission parameters.
Key Technical Specifications & Features
-
Actuator Type: High-sensitivity, digitally controlled electronic variable geometry (VNT/VGT) stepper actuator.
-
Turbo Model Match: Optimized for Toyota GD-series variable nozzle turbocharger platforms.
-
Part Cross-References: 17201-11110 | 17201-11120 | 1720111110 | 1720111200 | CT16V / G-Stroke Series.
-
Upgraded Internal Gear Train: Built using reinforced, high-strength composite polymer or metal gears designed to resist high-frequency modulation wear and teeth stripping.
-
Thermal Protection Circuitry: The internal circuit board is sealed with a high-grade potting compound to shield sensitive digital microprocessors from extreme under-hood heat spikes and exhaust manifold radiation.
-
Plug-and-Play Connector: Features a factory-spec electrical pin connector socket designed for a secure, moisture-resistant fit into the factory Toyota wiring harness.
